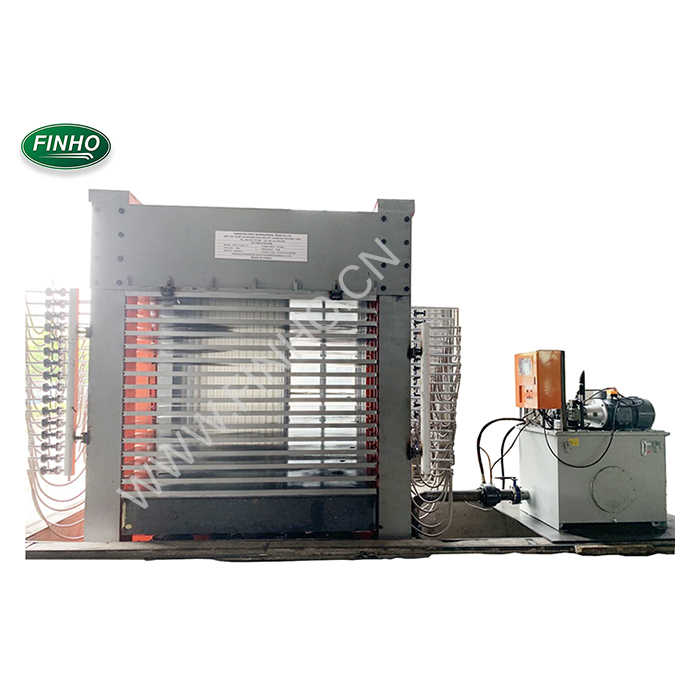

| 1000 TONS , 21PLATES , 6*12 HOT PRESS MACHINE | ||
| 1 | hot press plates | 1950*3850*60 mm |
| 2 | hot press plates numbers | 21 sheets |
| 3 | hot press layer number | 20 layers |
| 4 | hydraulic pistons | 6 units of diameter 280 mm |
| 5 | Nominal pressure | 1000 tons |
| 6 | distance between layers | 90 mm |
| 7 | hydraulic pistons stroke | 1800 mm |
| 8 | No-load closing time | 17-20 seconds |
| 9 | hydraulic system control methods | manual and automatic control |
| 10 | limit pressure | 25 MPa |
| 11 | Fast pump and motor | 15KW motor |
| 12 | prefill pump and motor | 11KW |
| 13 | heating medium | heat transfer oils/steam |
| 14 | top, bottom, middle cross beams | 1100 mm , 1100 mm , 450 mm |
| 15 | machine structure | single gantry , fixed with bolts |
| 16 | Total power | 29.5KW motor |
| 17 | Total Weight | 115 Tons |
